    20t 50t 120t 150t 200t Capacity Electric Double Acting Lift Hydraulic Cylinder Jack

    20t 50t 120t 150t 200t Electric Double Acting Lift Hydraulic Cylinder Jack

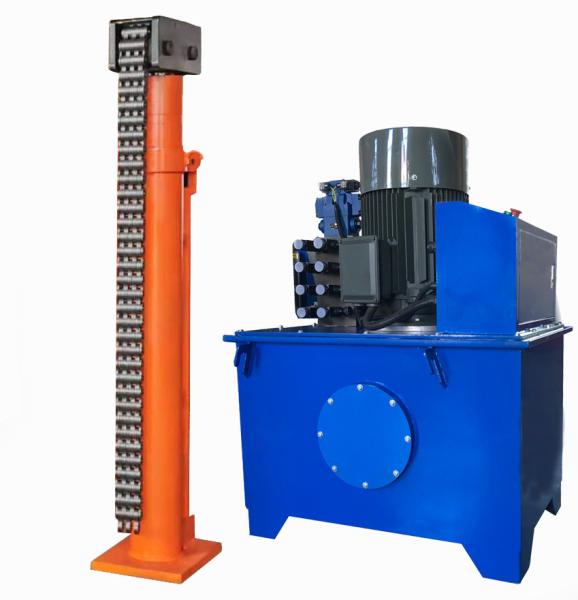

    LYT-type hydraulic jacks is composed of one-stage double-acting hydraulic cylinder, pulley block, load-bearing chain and oil way etc. Moveable pulley is used to enlarge chain stroke, i.e. traveling distance of the cylinder is 1/2 of lifting distance of the chain. It applies to inverted installation and construction of various large storage tanks (steel) and various storage tanks.

    LYT-type chain-type hydraulic hoist includes the following models: LYT-120-2700, LYT-200-2700, and LYT-300-2700 etc. (those with special stroke need to be customized).20t 50t 120t 150t 200t Electric Double Acting Lift Hydraulic Cylinder JackTechnical Parameter

    1.Technical performance parameters of hydraulic pump station

    ModelTank volumeRated pressureRated flowPowerControl voltage of solenoid valveMotor drive rate
    YB-7.2220L(700*550*580)25Mpa7.2L/minThree-phase Four-wire (380V)220V5.5kw
    YB-14.5340L(750*650*650)25Mpa14.5L/min220V7.5kw

    2.Technical performance parameters of the hoist

    ModelRated lifting capacity (KN)Hydraulic area (mm)Rated oil pressure (MPa)Piston stroke (mm)Chain stroke (mm)Cylinder safety equipmentReinforcement measures
    LYT-120-2700120113042515002700Double-direction oil-way hydraulic lock2 adjustable pull rods
    LYT-200-270020018859.62515002700
    LYT-300-2700300254342515002700

    20t 50t 120t 150t 200t Electric Double Acting Lift Hydraulic Cylinder Jack1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
    2. We can provide all technical documents and advices to support you for construction procedure clearifications
    3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
    4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
    5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
