YB Hydraulic Jacking System Max Height 400mm for Tank Lifting Equipment in Construction

Simple Hydraulic Jacking System
I.Product introdcution
Hydraulic jacking equipment is a new and special lifting equipment powered by hydraulic oil. By pushing the reciprocating movement of the hydraulic cylinder piston, load conversion is carried out between the upper clamping mechanism connected with the upper end of the piston and the lower clamping mechanism connected with the lower part of the cylinder, so as to realize lifting.The hydraulic jacking equipment is a single-acting two-stage hydraulic cylinder, used for vertical take-off and landing work, return need external force or self-weight back.The equipment is compact, stable, easy to operate, adjustable load, fast installation, high synchronization accuracy.
Hydraulic Jacking System Tank Lifting Equipment for Tank Construction MachineryII.Product advantages
1, simple operation, adjustable load, stable equipment lifting, good synchronization effect.
2, good compatibility, greatly saving customers' tooling costs.
3, can cross work with the inner ring automatic welding machine.
III.Product parameter

1,Pump station (YB-40)
Maximum pressure25MPa
Power11KW
Rated oil flow40L/min
Motor rotate speed1470r/min
Oil tank capacity240L
System temperature20-60ºC
Oil filter precision20υm
VoltageMain power supply 220V, 3 phase)
System oil typeL-HM46# antiwear hydraulic oil
Total weight370Kg
Outsize(mm)950*850*820
2,SQD-120-100S.F JACKS
Theory lifting capacity123KN
Rated lift capacity120KN
Rated oil pressure18MPa
Hydraulic stroke100±0.5mm
Glissade capacity≤5mm
Weight≤30Kg
Oil outletM16*1.5
Installation size for jack baseSettle 4-M16 on the circumference of a φ120 circle
Installation size for up and down chuckSettle 3 *16U hole on the circumference of a φ110 circle
Size(mm)138*138*500
Suitable lifting rodφ32round steel(45#)
Chuck deviceScrew mechanism
3,Jack support (TSJ-120-2600L)
Total height3460mm
Lifting rod height:3900mm
Slider stroke2630mm
Sliding block guide wheel quantity4 pcs
Lifting rod diameterφ32mm
distance between expansion loop support to ground310mm
Size(mm)3900*300*300

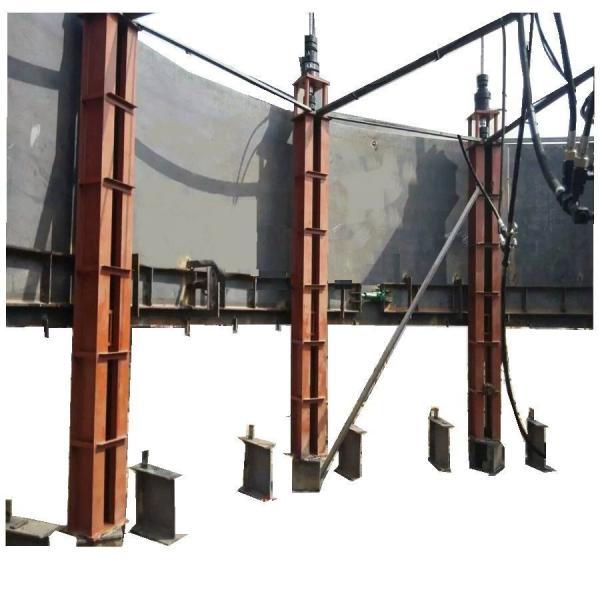

IV.Product photos
Hydraulic Jacking System Tank Lifting Equipment for Tank Construction MachineryHydraulic Jacking System Tank Lifting Equipment for Tank Construction MachineryHydraulic Jacking System Tank Lifting Equipment for Tank Construction MachineryHydraulic Jacking System Tank Lifting Equipment for Tank Construction Machinery

V.Company Introduction
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
VI. What we can bring to you?

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor
.
