    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options

    Ask Lasest Price
    Brand Name : WINCOO
    Price : $4,200.00/sets 1-99 sets
    • Product Details
    • Company Profile

    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options

    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options
    Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options

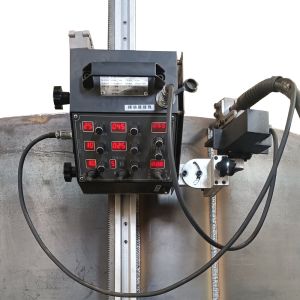

    A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.
    Reference Product Parameter
    Items
    Parameter
    Notes
    Straight rail type
    Soft rail type
    External power source
    AC 220V 50/60 Hz
    Three-hole
    Working power source
    AC 20V
    Use of each driver
    Dimensions
    245*520*280cm
    245*520*290cm
    Length*width*height
    Weight
    8.6 kg
    10.4 kg
    Main host
    Track type
    Linear motion guide
    Self-aligning flexible slide rails
    Drive mode
    Gear drive
    Sprocket drive
    Welding speed
    0~1650mm/min
    Fastest
    The thinnest adsorption plate thickness
    3mm
    Magnetically attractive metal
    Welding gun adjustment range
    65mm
    Inching for up and down
    80mm
    Inching for left and right
    + -60°
    Swinging angle
    + -25°
    Marching Angle
    Stop left, stop right
    Swinging form
    Operating function
    0-100mm/min
    Swinging speed
    0-2.5s
    Left and right residence time
    +-14mm
    Swinging width
    +-5mm
    Center for compensation
    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options
    Tank Seam Welding Machine and Versatile with Tig/Mig/MAG/SAW Options
    Company Profile
    We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

    Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

    To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipment/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
